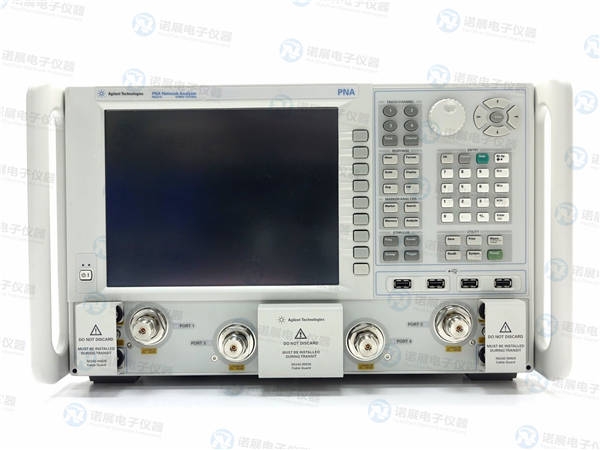

    N5221A PNA 微波網絡分析儀,13.5 GHz

    N5221A PNA 微波網絡分析儀,13.5 GHz

    產品品牌:Keysight

    產品型號:N5221A

    業務范圍:銷售/租賃/回收/維修/計量

    維修周期:1-7天

    產品規格

    N5221A PNA 微波網絡分析儀,13.5 GHz

    提供N5221A PNA 微波網絡分析儀,13.5 GHz一站式綜合服務,專業高效!

    產品描述
    ??

    N5221A PNA 微波網絡分析儀,13.5 GHz



    主要特性和功能

    ·獲得卓越的測量和設計成果

    ·PNA 提供出色的測量完整性,可將深入的洞察轉變?yōu)槌錾脑O(shè)計

    ·使用性能出眾的微波網絡分析儀,應對苛刻的測量挑戰

    ·是德科技 S 參數測量有很高的精度

    ·通過個性化配置得到恰當?shù)男阅埽詽M足您特定的預算和測量需求



    技術指標

    最大頻率

    13 GHz

    動態范圍

    127 dB

    輸出功率

    13 dBm

    軌跡噪聲

    0.002 dBrms

    內置端口數量

    2 或 4 端口

    諧波

    -19 dBc

    本底噪聲

    -114 dBm

    掃描速度最高可達 201 個點

    6.3 ms

    網絡分析儀系列

    PNA 高性能

    應用

    S 參數

    多端口

    回波損耗

    時域

    元器件

    天線

    混頻器/變頻器

    放大器

    臺式

     是



    選件

    N5221A-200

    2 ports, single source, base hardware configuration

    N5221A-201

    2 ports, single source, with configurable test set

    N5221A-210

    PNA 2 端口計量選件(選件 210)

    N5221A-217

    2 ports, single source, configurable test set, extended power range

    N5221A-219

    2 ports, single source, configurable test set, extended power range, bias-tees

    N5221A-400

    4 ports, dual source, base hardware configuration

    N5221A-401

    4 ports, dual source, with configurable test set

    N5221A-417

    4 ports, dual source, configurable test set, extended power range

    N5221A-419

    4 ports, dual source, configurable test set, extended power range, bias-tees

    N5221A-008

    Pulsed RF Measurements

    N5221A-010

    Time Domain

    N5221A-020

    Add IF inputs

    N5221A-021

    Add pulse modulator to internal first source

    N5221A-022

    Add pulse modulator to internal second source

    N5221A-025

    Add four internal pulse generators

    N5221A-028

    Noise figure measurements using standard receivers

    N5221A-080

    Frequency offset measurements

    N5221A-082

    Scalar calibrated converter measurements

    N5221A-083

    Vector and scalar calibrated converter measurements

    N5221A-084

    Embedded LO measurements

    N5221A-086

    Gain compression application

    N5221A-087

    Intermodulation distortion measurements

    N5221A-118

    Fast CW Mode

    N5221A-460

    Integrated true-mode stimulus application

    N5221A-551

    N-port calibrated measurements

    N5221A-088

    Source phase control

    N5221A-089

    Differential and I/Q devices application

    N5221A-007

    Automatic Fixture Removal

    N5221A-015

    Dynamic Uncertainty for S-Parameter Measurements

    N5221A-090

    Spectrum Analyzer
